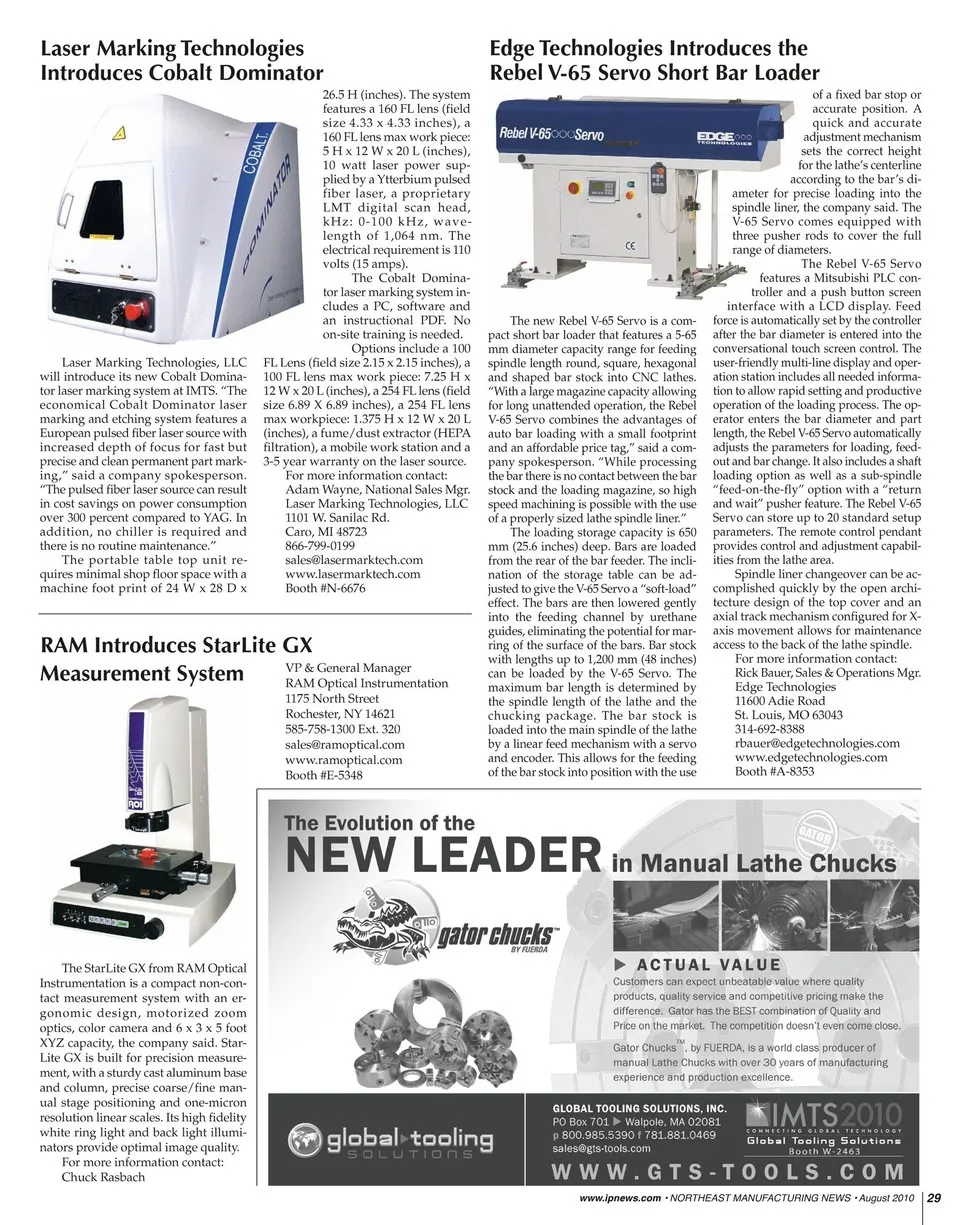

Northeast Manufacturing News August 2010 : Page 29

Laser Marking Technologies Introduces Cobalt Dominator 26.5H(inches). The system features a 160 FLlens (field size 4.33 x 4.33 inches), a 160 FLlensmaxwork piece: 5 H x 12Wx 20 L(inches), 10 watt laser power sup-plied by a Ytterbiumpulsed fiber laser, a proprietary LMT digital scan head, kHz: 0-100 kHz, wave-length of 1,064 nm. The electrical requirement is 110 volts (15 amps). The Cobalt Domina-tor lasermarking system in-cludes a PC, software and an instructional PDF. No on-site training is needed. Options include a 100 Laser Marking Technologies, LLC will introduce its new Cobalt Domina-tor lasermarking system at IMTS. “The economical Cobalt Dominator laser marking and etching system features a European pulsed fiber laser sourcewith increased depth of focus for fast but precise and clean permanent partmark-ing,” said a company spokesperson. “The pulsed fiber laser source can result in cost savings on power consumption over 300 percent compared to YAG. In addition, no chiller is required and there is no routinemaintenance.” The portable table top unit re-quires minimal shop floor space with a machine foot print of 24 W x 28 D x FLLens (field size 2.15 x 2.15 inches), a 100 FLlens max work piece: 7.25 H x 12Wx 20 L(inches), a 254 FLlens (field size 6.89 X 6.89 inches), a 254 FLlens max workpiece: 1.375 H x 12Wx 20 L (inches), a fume/dust extractor (HEPA filtration), amobilework station and a 3-5 yearwarranty on the laser source. Formore information contact: AdamWayne,National SalesMgr. LaserMarking Technologies, LLC 1101W. Sanilac Rd. Caro,MI 48723 866-799-0199 sales@lasermarktech.com www.lasermarktech.com Booth #N-6676 Measurement System RAM Introduces StarLite GX The new Rebel V-65 Servo is a com-pact short bar loader that features a 5-65 mm diameter capacity range for feeding spindle length round, square, hexagonal and shaped bar stock into CNC lathes. “With a largemagazine capacity allowing for long unattended operation, the Rebel V-65 Servo combines the advantages of auto bar loading with a small footprint and an affordable price tag,” said a com-pany spokesperson. “While processing the bar there is no contact between the bar stock and the loading magazine, so high speedmachining is possible with the use of a properly sized lathe spindle liner.” The loading storage capacity is 650 VP& GeneralManager RAMOptical Instrumentation 1175 North Street Rochester, NY 14621 585-758-1300 Ext. 320 sales@ramoptical.com www.ramoptical.com Booth #E-5348 mm (25.6 inches) deep. Bars are loaded from the rear of the bar feeder. The incli-nation of the storage table can be ad-justed to give theV-65 Servo a “soft-load” effect. The bars are then lowered gently into the feeding channel by urethane guides, eliminating the potential formar-ring of the surface of the bars. Bar stock with lengths up to 1,200 mm (48 inches) can be loaded by the V-65 Servo. The maximum bar length is determined by the spindle length of the lathe and the chucking package. The bar stock is loaded into themain spindle of the lathe by a linear feedmechanismwith a servo and encoder. This allows for the feeding of the bar stock into positionwith the use Edge Technologies Introduces the RebelV-65 Servo Short Bar Loader of a fixed bar stop or accurate position. A quick and accurate adjustmentmechanism ets the correct height or the lathe’s centerline according to the bar’s di-ecise loading into the the company said. The comes equipped with rods to cover the full eters. he Rebel V-65 Servo Mitsubishi PLC con-a push button screen a LCD display. Feed force is automatically set by the controller after the bar diameter is entered into the conversational touch screen control. The user-friendlymulti-line display and oper-ation station includes all needed informa-tion to allow rapid setting and productive operation of the loading process. The op-erator enters the bar diameter and part length, the RebelV-65 Servo automatically adjusts the parameters for loading, feed-out and bar change. It also includes a shaft loading option as well as a sub-spindle “feed-on-the-fly” option with a “return and wait” pusher feature. The Rebel V-65 Servo can store up to 20 standard setup parameters. The remote control pendant provides control and adjustment capabil-ities from the lathe area. Spindle liner changeover can be ac-complished quickly by the open archi-tecture design of the top cover and an axial trackmechanismconfigured for X-axis movement allows for maintenance access to the back of the lathe spindle. Formore information contact: Rick Bauer, Sales&OperationsMgr. Edge Technologies 11600Adie Road St. Louis,MO 63043 314-692-8388 rbauer@edgetechnologies.com www.edgetechnologies.com Booth #A-8353 The StarLite GX from RAMOptical Instrumentation is a compact non-con-tact measurement system with an er-gonomic design, motorized zoom optics, color camera and 6 x 3 x 5 foot XYZ capacity, the company said. Star-Lite GX is built for precision measure-ment, with a sturdy cast aluminumbase and column, precise coarse/fine man-ual stage positioning and one-micron resolution linear scales. Its high fidelity white ring light and back light illumi-nators provide optimal image quality. Formore information contact: Chuck Rasbach www.ipnews.com•NORTHEASTMANUFACTURINGNEWS•August2010 29

Laser Marking Technologies Introduces Cobalt Dominator

Laser Marking Technologies, LLC will introduce its new Cobalt Dominator laser marking system at IMTS. “The economical Cobalt Dominator laser marking and etching system features a European pulsed fiber laser source with increased depth of focus for fast but precise and clean permanent part marking,” said a company spokesperson.“The pulsed fiber laser source can result in cost savings on power consumption over 300 percent compared to YAG. In addition, no chiller is required and there is no routine maintenance.” <br /> <br /> The portable table top unit requires minimal shop floor space with a machine foot print of 24 W x 28 D x26. 5 H (inches). The system features a 160 Fllens (field size 4.33 x 4.33 inches), a 160 Fllen smaxwork piece: 5 H x 12 W x 20 L( inches), 10 watt laser power supplied by a Ytterbium pulsed fiber laser, a proprietary LMT digital scan head, kHz: 0-100 kHz, wavelength of 1,064 nm. The electrical requirement is 110 volts (15 amps).<br /> <br /> The Cobalt Dominator laser marking system includes a PC, software and an instructional PDF. No on-site training is needed.<br /> <br /> Options include a 100 FL Lens (field size 2.15 x 2.15 inches), a 100 Fll ens max work piece: 7.25 H x 12Wx 20 L( inches), a 254 Fllens (field size 6.89 X 6.89 inches), a 254 Fllens max workpiece: 1.375 H x 12 W x 20 L (inches), a fume/dust extractor (HEPA filtration), a mobile work station and a 3-5 year warranty on the laser source.<br /> <br /> For more information contact: AdamWayne, National SalesMgr.<br /> Laser Marking Technologies, LLC 1101 W. Sanilac Rd. Caro, MI 48723 866-799-0199 sales@lasermarktech.com www.lasermarktech.com Booth #N-6676

RAM Introduces StarLite GX Measurement System

The StarLite GX from RAMOptical Instrumentation is a compact non-contact measurement system with an ergonomic design, motorized zoom optics, color camera and 6 x 3 x 5 foot XYZ capacity, the company said. Star- Lite GX is built for precision measurement, with a sturdy cast aluminumbase and column, precise coarse/fine manual stage positioning and one-micron resolution linear scales. Its high fidelity white ring light and back light illuminators provide optimal image quality.<br /> <br /> For more information contact: Chuck Rasbach VP & General Manager RAM Optical Instrumentation 1175 North Street Rochester, NY 14621 585-758-1300 Ext. 320 sales@ramoptical.com www.ramoptical.com Booth #E-5348

Edge Technologies Introduces the Rebel V-65 Servo Short Bar Loader

The new Rebel V-65 Servo is a compact short bar loader that features a 5-65 mm diameter capacity range for feeding spindle length round, square, hexagonal and shaped bar stock into CNC lathes.“With a large magazine capacity allowing for long unattended operation, the Rebel V-65 Servo combines the advantages of auto bar loading with a small footprint and an affordable price tag,” said a company spokesperson. “While processing the bar there is no contact between the bar stock and the loading magazine, so high speed machining is possible with the use of a properly sized lathe spindle liner.” <br /> <br /> The loading storage capacity is 650 mm (25.6 inches) deep. Bars are loaded from the rear of the bar feeder. The inclination of the storage table can be adjusted to give the V-65 Servo a “soft-load” effect. The bars are then lowered gently into the feeding channel by urethane guides, eliminating the potential for marring of the surface of the bars. Bar stock with lengths up to 1,200 mm (48 inches) can be loaded by the V-65 Servo. The maximum bar length is determined by the spindle length of the lathe and the chucking package. The bar stock is loaded into the main spindle of the lathe by a linear feed mechanism with a servo and encoder. This allows for the feeding of the bar stock into position with the use<br /> Of a fixed bar stop or accurate position. A quick and accurate adjustment mechanism sets the correct height for the lathe’s centerline according to the bar’s diameter for precise loading into the spindle liner, the company said. The V-65 Servo comes equipped with three pusher rods to cover the full range of diameters.<br /> <br /> The Rebel V-65 Servo features a Mitsubishi PLC controller and a push button screen interface with a LCD display. Feed force is automatically set by the controller after the bar diameter is entered into the conversational touch screen control. The user-friendly multi-line display and operation station includes all needed information to allow rapid setting and productive operation of the loading process. The operator enters the bar diameter and part length, the Rebel V-65 Servo automatically adjusts the parameters for loading, feed out and bar change. It also includes a shaft loading option as well as a sub-spindle “feed-on-the-fly” option with a “return and wait” pusher feature. The Rebel V-65 Servo can store up to 20 standard setup parameters. The remote control pendant provides control and adjustment capabilities from the lathe area.<br /> <br /> Spindle liner changeover can be accomplished quickly by the open architecture design of the top cover and an axial track mechanism configured for X axis movement allows for maintenance access to the back of the lathe spindle.<br /> <br /> For more information contact: Rick Bauer, Sales & OperationsMgr.Edge Technologies 11600 Adie Road St. Louis, MO 63043 314-692-8388 rbauer@edgetechnologies.com www.edgetechnologies.com Booth #A-8353

Global Tooling Solutions



Loading
